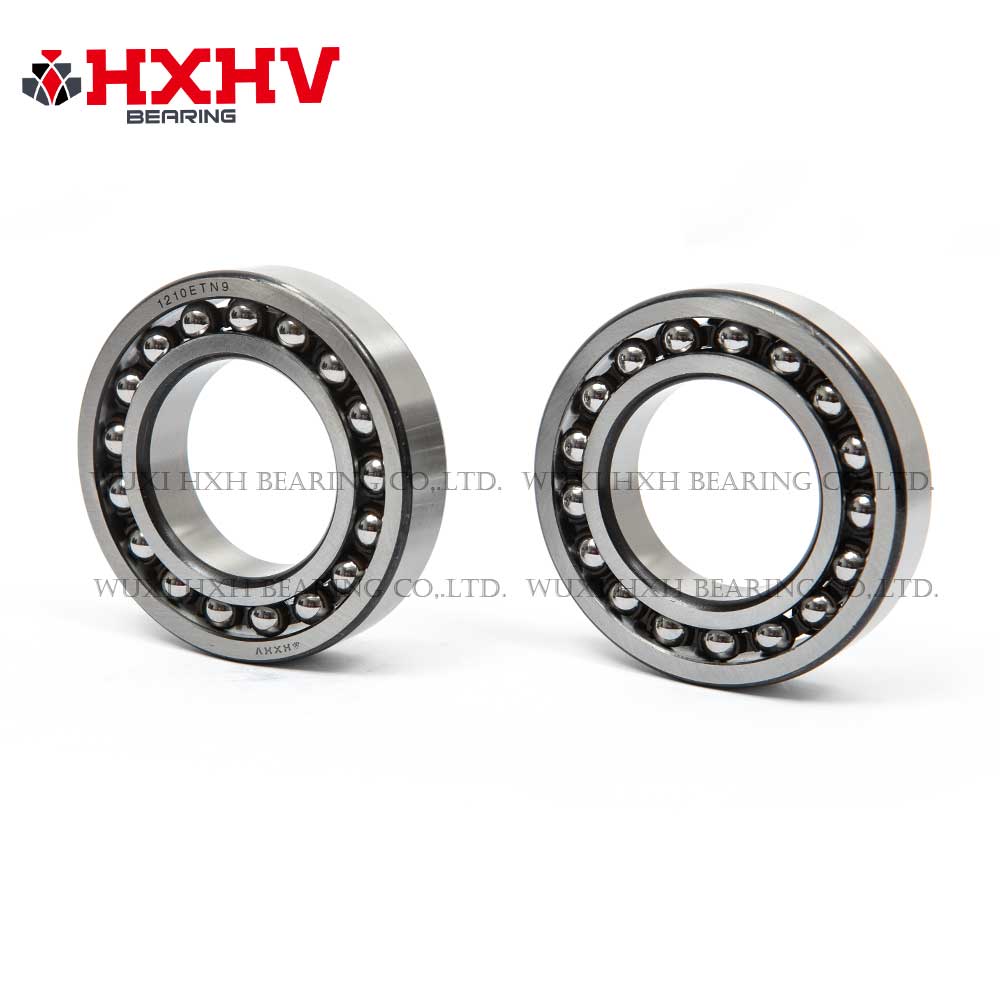

HXHV Self-aligning ball bearings 1210 ETN9 with black edge and nylon retainer

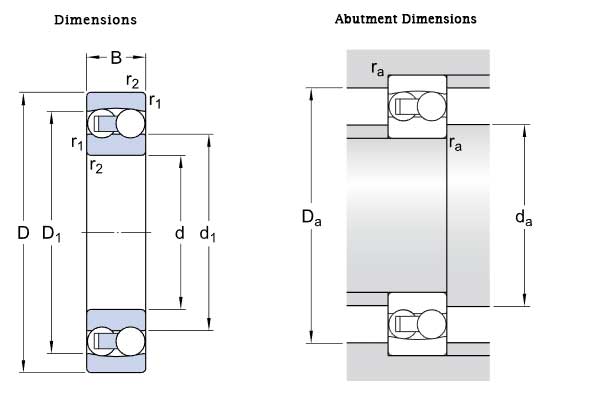

| Dimensions | |
| d | 50 mm |
| D | 90 mm |
| B | 20 mm |
| d1 (≈) | 61.7 mm |
| D1 (≈) | 78.1 mm |
| r1,2 (min.) | 1.1 mm |
| Abutment dimensions | |
| da (min.) | 57 mm |
| Da (max.) | 83 mm |
| ra (max.) | 1.1 mm |
| Calculation data | |
| Basic dynamic load rating (C) | 26.5 |
| Basic static load rating (C0) | 9.15 |
| Fatigue load limit (Pu) | 0.48 |
| Reference speed () | 16000 |
| Limiting speed () | 10000 |
| Permissible angular misalignment (α) | 2.5 |
| Calculation factor (kr) | 0.04 |
| Calculation factor (e) | 0.21 |
| Calculation factor (Y0) | 3.2 |
| Calculation factor (Y1) | 3 |
| Calculation factor (Y2) | 4.6 |
| Mass | |
| Mass bearing | 0.53 kg |
