HXHV Self Aligning Ball Bearing 1209 ETN9 with size 45x85x19 mm

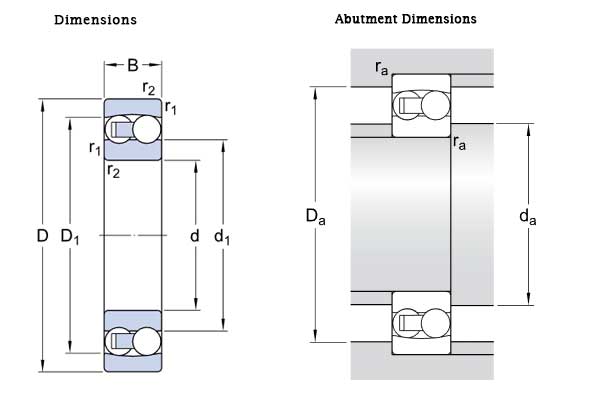

| Dimensions | |
| d | 45 mm |
| D | 85 mm |
| B | 19 mm |
| d1 (≈) | 57.51 mm |
| D1 (≈) | 72.5 mm |
| r1,2 (min.) | 1.1 mm |
| Abutment dimensions | |
| da (min.) | 52 mm |
| Da (max.) | 78 mm |
| ra (max.) | 1.1 mm |
| Calculation data | |
| Basic dynamic load rating (C) | 22.9 kN |
| Basic static load rating (C0) | 7.8 kN |
| Fatigue load limit (Pu) | 0.4 kN |
| Reference speed () | 17000 r/min |
| Limiting speed () | 11000 r/min |
| Permissible angular misalignment (α) | 2.5 ° |
| Calculation factor (kr) | 0.04 |
| Calculation factor (e) | 0.21 |
| Calculation factor (Y0) | 3.2 |
| Calculation factor (Y1) | 3 |
| Calculation factor (Y2) | 4.6 |
| Weight | 0.47 kg |
