HXHV 719C 719AC Angular Contact Ball Bearings

Short Description:


  • SERVICE: Customized Service / Warranty / Certificate / Competitive Price & quality / Catalogs / Fast Delivery / Quick Reply
  • Payment: T/T, Paypal, Western Union, Credit Card, Trade Assurance
  • Optional Brand:: Kaydon, SKF, NSK, KOYO, TIMKEN, FAG, NSK, HIWIN, THK, etc.
  • Product Detail

    Get Price Now

    719C AC

    High Speed angular contact ball bearings

    Model
    Number

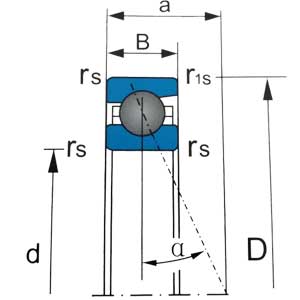

    α Size (mm) Specified Load Limited Speed Weight (kg)
    d D B rsmin r1smin a≈ Cr Cor Grease Oil
    719/8 C 15° 8 19 6 0.30 0.10 5 2.5 1.5 75000 120000 0.01
    719/8 AC 25° 8 19 6 0.30 0.10 6 2.3 1.3 67000 100000 0.01
    71900 C 15° 10 22 6 0.30 0.10 5 2.9 1.8 70000 110000 0.01
    71900 AC 25° 10 22 6 0.30 0.10 7 2.7 1.7 67000 100000 0.01
    71901 C 15° 12 24 6 0.30 0.10 5 3.2 2.2 63000 95000 0.01
    71901 AC 25° 12 24 6 0.30 0.10 7 3.1 2.1 56000 85000 0.01
    71902 C 15° 15 28 7 0.30 0.10 6 0.8 3.4 53000 80000 0.02
    71902 AC 25° 15 26 7 0.30 0.10 9 4.6 3.2 50000 75000 0.02
    71903 C 15° 17 30 7 0.30 0.10 7 5.1 3.8 50000 75000 0.02
    71903 AC 25° 17 30 7 0.30 0.10 9 4.8 3.6 45000 67000 0.02
    71904 C 15° 20 37 9 0.30 0.15 8 7.4 5.8 40000 60000 0.04
    71904 AC 25° 20 37 9 0.30 0.15 11 7.0 5.6 38000 56000 0.04
    71905 C 15° 25 42 9 0.30 0.15 9 7.6 6.5 34000 50000 0.04
    71905 AC 25° 25 42 9 0.30 0.15 12 7.2 6.2 30000 45000 0.04
    71906 C 15° 30 47 9 0.30 0.15 10 8 7.6 30000 45000 0.05
    71906 AC 25° 30 47 9 0.30 0.15 13 7.6 7.2 26000 40000 0.05
    71907 C 15° 35 55 10 0.60 0.15 11 11 10.9 26000 40000 0.07
    71907 AC 25° 35 55 10 0.60 0.15 16 10.4 10.3 20000 34000 0.07
    71908 C 15° 40 62 12 0.60 0.15 13 14 14.2 20000 34000 0.11
    71908 AC 25° 40 62 12 0.60 0.15 18 13.3 13.5 18000 30000 0.11
    71909 C 15° 45 68 12 0.60 0.15 14 14.7 16.1 18000 30000 0.13
    71909 AC 25° 45 68 12 0.60 0.15 19 13.9 15.2 17000 28000 0.13
    71910 C 15° 50 72 12 0.60 0.15 14 19 21.2 17000 28000 0.13
    71910 AC 25° 50 72 12 0.60 0.15 20 17.9 20.1 15000 24000 0.13
    71911 C 15° 55 80 13 1.00 0.30 16 23.7 27.4 15000 24000 0.18
    71911 AC 25° 55 80 13 1.00 0.30 22 22.4 26 14000 22000 0.18
    71912 C 15° 60 85 13 1.00 0.30 16 24.8 30.3 14000 22000 0.19
    71912 AC 25° 60 85 13 1.00 0.30 23 23.3 28.7 13000 20000 0.19
    71913 C 15° 65 90 13 1.00 0.30 `17 25.1 31.9 13000 20000 0.2
    71913 AC 25° 65 90 13 1.00 0.30 25 23.6 30.2 12000 19000 0.2
    71914 C 15° 70 100 16 1.00 0.30 19 34.5 43.4 12000 19000 0.33
    71914 AC 25° 70 100 16 1.00 0.30 28 32.6 41.2 11000 18000 0.33
