China Cheap price Ka045 – KAYDON BEARING KA045AR0 – HXHV Bearings Detail:

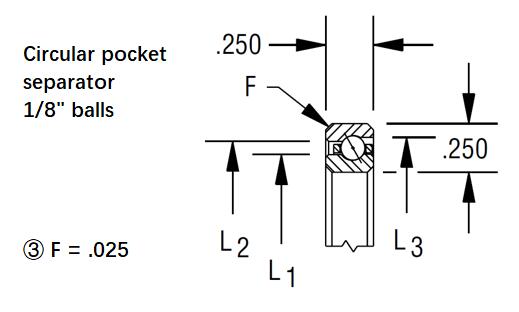

| KA SERIES | ||||||||||
| KAYDON Bearing Number |
Dimensions in Inches | Capacities in Pounds | Weight in Pounds |
|||||||
| Bore | Outside Dia. |
Land Dia. L1 |
Land Dia. L2 |
C’Bore Dia. L3 |
Radial | Thrust | ||||
| Static② | Dyn. | Static② | Dyn. | |||||||
| KA020AR0 | 2 | 2.5 | 2.186 | 2.314 | 2.369 | 790 | 405 | 2280 | 960 | 0.1 |
| KA025AR0 | 2.5 | 3 | 2.686 | 2.814 | 2.869 | 960 | 459 | 2780 | 1100 | 0.12 |
| KA030AR0 | 3 | 3.5 | 3.186 | 3.314 | 3.367 | 1140 | 507 | 3290 | 1230 | 0.14 |
| KA035AR0 | 3.5 | 4 | 3.686 | 3.814 | 3.867 | 1310 | 552 | 3790 | 1350 | 0.17 |
| KA040AR0 | 4 | 4.5 | 4.186 | 4.314 | 4.367 | 1490 | 595 | 4300 | 1470 | 0.19 |
| KA042AR0 | 4.25 | 4.75 | 4.436 | 4.564 | 4.615 | 1580 | 616 | 4550 | 1530 | 0.2 |
| KA045AR0 | 4.5 | 5 | 4.686 | 4.814 | 4.865 | 1660 | 637 | 4810 | 1580 | 0.21 |
| KA047AR0 | 4.75 | 5.25 | 4.936 | 5.064 | 5.115 | 1750 | 657 | 5060 | 1640 | 0.22 |
| KA050AR0 | 5 | 5.5 | 5.186 | 5.314 | 5.365 | 1840 | 676 | 5310 | 1690 | 0.23 |
| KA055AR0 | 5.5 | 6 | 5.686 | 5.814 | 5.863 | 2020 | 715 | 5820 | 1800 | 0.25 |
| KA060AR0 | 6 | 6.5 | 6.186 | 6.314 | 6.363 | 2190 | 752 | 6320 | 1900 | 0.28 |
| KA065AR0 | 6.5 | 7 | 6.686 | 6.814 | 6.861 | 2370 | 788 | 6830 | 2000 | 0.3 |
| KA070AR0 | 7 | 7.5 | 7.186 | 7.314 | 7.361 | 2540 | 823 | 7340 | 2100 | 0.32 |
| KA075AR0 | 7.5 | 8 | 7.686 | 7.814 | 7.861 | 2720 | 857 | 7840 | 2190 | 0.34 |
| *KA080AR0 | 8 | 8.5 | 8.186 | 8.314 | 8.359 | 2890 | 890 | 8350 | 2280 | 0.36 |
| *KA090AR0 | 9 | 9.5 | 9.186 | 9.314 | 9.357 | 3240 | 954 | 9360 | 2470 | 0.41 |
| KA100AR0 | 10 | 10.5 | 10.186 | 10.314 | 10.355 | 3590 | 1014 | 10370 | 2640 | 0.45 |
| *KA110AR0 | 11 | 11.5 | 11.186 | 11.314 | 11.353 | 3940 | 1072 | 11380 | 2810 | 0.5 |
| *KA120AR0 | 12 | 12.5 | 12.186 | 12.314 | 12.349 | 4290 | 1128 | 12390 | 2970 | 0.54 |
| ① Capacities listed are not simultaneous. For combined loading see discussion of Bearing Selection and Load Analysis. Dynamic capacities are based upon 1 million revolutions of L10 life. Published capacities do not apply to hybrid series bearings P, X, and Y - contact KAYDON product engineering for values. ② Static capacities are non-brinell limits based on rigid support from the shaft and housing. ③ “F” is the maximum shaft or housing fillet radius the bearing corners will clear. * Contact KAYDON for lead time and minimum purchase requirement. |
||||||||||
Product detail pictures:
Related Product Guide:
Global Silicon Nitride Ceramics Market Forecast 2019-2024 Report Including | Top Manufacturers, Future innovations, Research Report Analysis | Ceramic Si3n4 Bearing
Ceramic Bearings Market Research Report by Raw Material Analysis, Sources, Market Comparison and Geography – Global Forecast To 2024 | 6204 Bearing Skf
Adhering to your principle of "quality, assistance, performance and growth", we have now gained trusts and praises from domestic and international customer for China Cheap price Ka045 – KAYDON BEARING KA045AR0 – HXHV Bearings, The product will supply to all over the world, such as: Morocco, French, Morocco, Ought to any of these products be of curiosity to you, remember to allow us to know. We are going to be satisfied to give you a quotation on receipt of one's in depth specs. We've our private experienced R&D enginners to meet any of one's requriements, We appear forward to receiving your enquires soon'and hope to have the opportunity to work together with you in the future. Welcome to check out our company.
To sent you the suitable price asap, we must know your basic requirements as below.
Bearing’s model number / quantity / material and any other special requirement on packing.
Sucs as: 608zz / 5000 pieces / chrome steel material
