Bottom price 30204 Bearing – Taper bearing 30204 – HXHV Bearings Detail:
taper bearing 30204

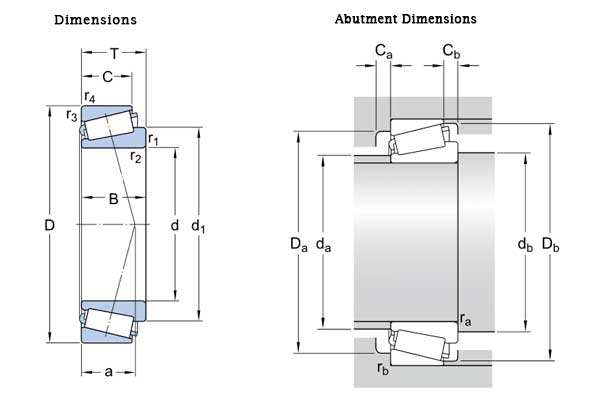

| Dimensions | |
| d | 20 mm |
| D | 47 mm |
| T | 15.25 mm |
| d1(≈) | 33.7 mm |
| B | 14 mm |
| C | 12 mm |
| r1,2(min.) | 1 mm |
| r3,4(min.) | 1 mm |
| a | 11.028 mm |
| Abutment Dimensions | |
| da(max.) | 28 mm |
| db(min.) | 26.5 mm |
| Da(min.) | 40 mm |
| Da(max.) | 41.5 mm |
| Db(min.) | 43 mm |
| Ca(min.) | 2 mm |
| Cb(min.) | 3 mm |
| ra(max.) | 1 mm |
| rb(max.) | 1 mm |
| Calculation data | |
| Basic dynamic load rating(C) | 34.1 |
| Basic static load rating(C0) | 28 |
| Fatigue load limit(Pu) | 3 |
| Reference speed | 12000 |
| Limiting speed | 15000 |
| Calculation factor(e) | 0.35 |
| Calculation factor(Y) | 1.7 |
| Calculation factor(Y0) | 0.9 |
| Mass bearing | 0.12 kg |
