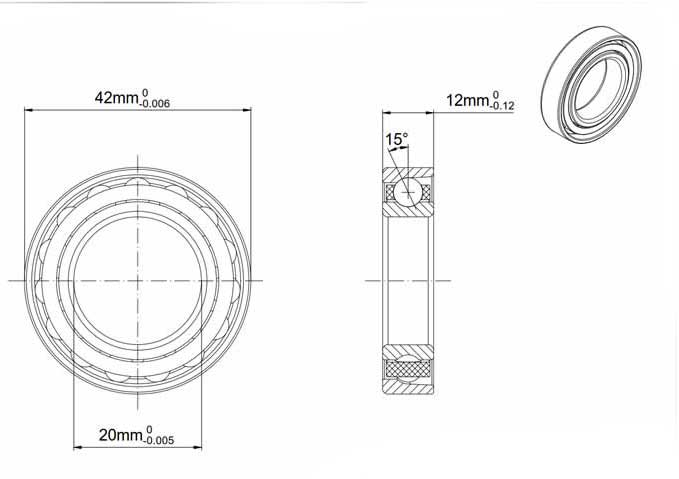

7004C HXHV Angular Contact Ball Bearing
| Brand | HXHV |
| Model | 7004C |
| Bearing Type | Sngle Row Angular Contact Ball Bearing |
| Material | Chrome steel |
| Seal Type | Open |
| Precision Rating | P4 (ABEC-7) |
| Contact Angle | 15° |
| Bore Dia (d) | 20 mm |
| Bore Dia Tolerance | -0.005mm to 0 |
| Outer Dia (D) | 42 mm |
| Outer Dia Tolerance | -0.006mm to 0 |
| Width (B) | 12 mm |
| Width Tolerance | -0.12mm to 0 |
| Dynamic Load Rating (Cr) (KN) | 11.7 |
| Static Load Rating (Cor) (KN) | 6.55 |
| Axial Load (KN) | 4.8 |
| Max Speed (Grease) (RPM) | 37100 |
| Max Speed (Oil) (RPM) | 56500 |
| Temperature Range | -40 to 120 ºC |
| Weight (grams) | 0.067 |
