30209 HXHV Single Row Tapered Roller Bearing

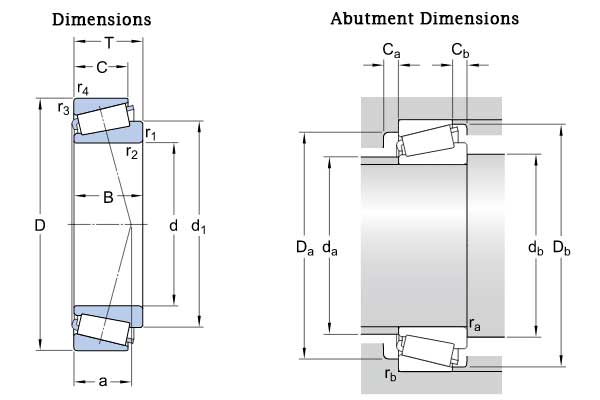

| Dimensions | |||
| d | 45 | mm | |
| D | 85 | mm | |
| T | 20.75 | mm | |
| d1 | ≈ | 63.1 | mm |
| B | 19 | mm | |
| C | 16 | mm | |
| r1,2 | min. | 1.5 | mm |
| r3,4 | min. | 1.5 | mm |
| a | 17.829 | mm | |
| Abutment Dimensions | |||
| da | max. | 54 | mm |
| db | min. | 53.5 | mm |
| Da | min. | 74 | mm |
| Da | max. | 77.5 | mm |
| Db | min. | 80 | mm |
| Ca | min. | 3 | mm |
| Cb | min. | 4.5 | mm |
| ra | max. | 1.5 | mm |
| rb | max. | 1.5 | mm |
| Calculation data | |||
| Basic dynamic load rating | C | 81.6 | kN |
| Basic static load rating | C0 | 76.5 | kN |
| Fatigue load limit | Pu | 8.65 | kN |
| Reference speed | 6300 | r/min | |
| Limiting speed | 8000 | r/min | |
| Calculation factor | e | 0.4 | |
| Calculation factor | Y | 1.5 | |
| Calculation factor | Y0 | 0.8 | |
| Mass bearing | 0.47 | kg | |
